Replace SRAM’s Full Mount Bolt Kit with this dedicated solution, designed to make Restrap’s Switch Axle and Switch Rack System compatible with GX, XX and X0 T-Type transmissions.
Available in two variations.
Determining what bolt kit you need:

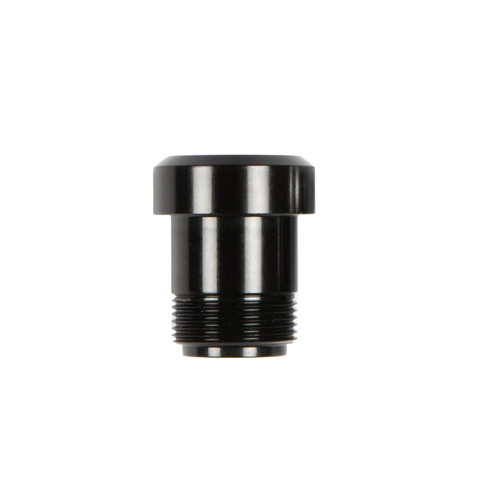

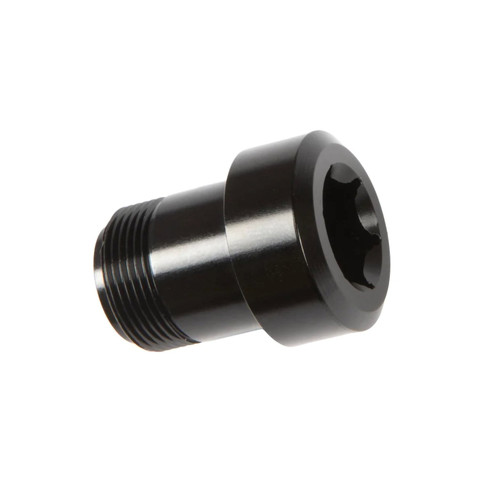

Full Mount Adaptor FM23 (GX):
- GX Eagle Transmission: RD-GX-E-B1
- Force XPLR AXS Transmission: RD-FRC-1E-E1
- Rival XPLR AXS Transmission: RD-RIV-1E-E1
- Eagle 70 Transmission: RD-70-A1
- Eagle 90 Transmission: RD-90-A
- S1000 Eagle Transmission: RD-S1000-E-A1
Full Mount Adaptor FM24 (XX/XO):
- XX SL Eagle Transmission: RD-XX-SLE-B1
- XX Eagle Transmission: RD-XX-E-B1
- X0 Eagle Transmission: RD-XO-E-B1
- RED XPLR AXS Transmission: RD-RED-1E-E1
Fitting:
- Put your bike into the red setting gear on the cassette and engage the clutch release.
- Partially remove your current thru-axle.
- Undo and remove the bolt derailleur with an 8mm hex key.
- Replace with the Restrap bolt, using the supplier adaptor if you do not have a 12mm hex key.
- Swap in the Switch Axle and tighten.
Part number: RS-SWI-FM1-ADP
Barcode: 5060367885158
Product code: RS SWI-FM1-ADP
