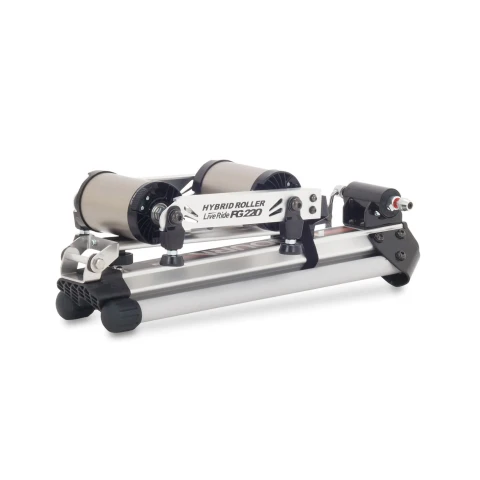

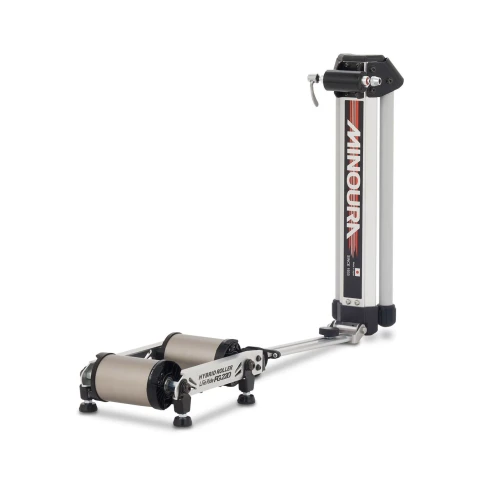

Designed for convenient and effective indoor training, the Live Ride Hybrid Rollers combine a compact footprint with dual resistance rollers for adaptable workout sessions. Their lightweight construction makes storage and transport simple.
Features:
- A model equipped with two resistance rollers.

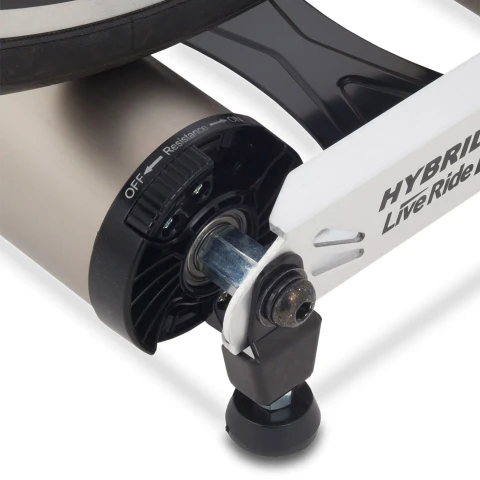

- Adjustable ON/OFF resistance rollers are positioned on both the front and rear.
- The included 12mm front thru-axle adapter allows for disc brake compatibility (Boost hub fork mount sold separately).

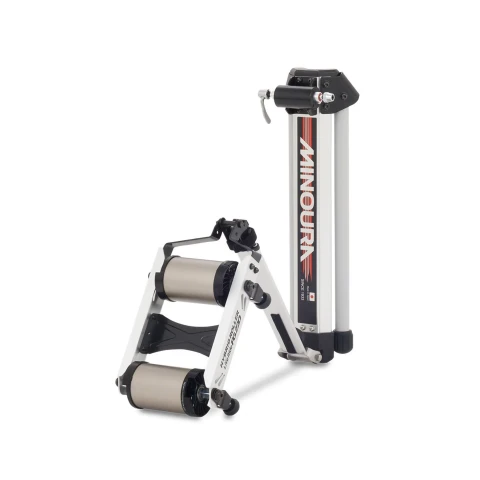

- With its lightweight and compact design, it's ideal for warming up and cooling down at the racetrack.

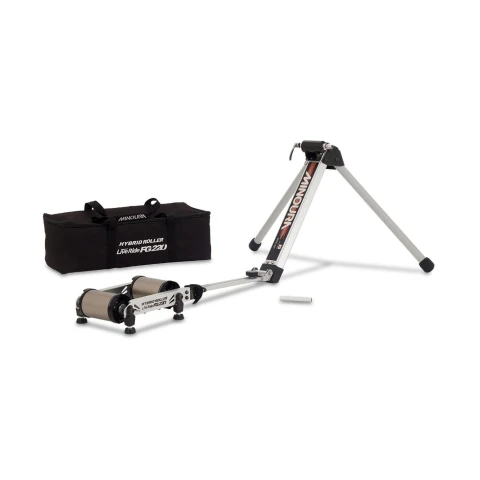

- A storage bag is included for easy transport.
- This self-weight system eliminates the need to adjust the roller pressure.(The weight of the rider and bicycle is directly applied to the roller via the rear wheel.)
- Suitable for a wide range of bikes, from road bikes to cyclocross bikes and mountain bikes. (Wheelbase: 930mm to 1,200mm)

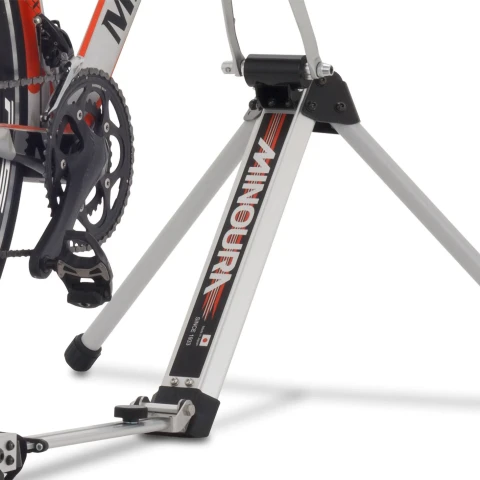

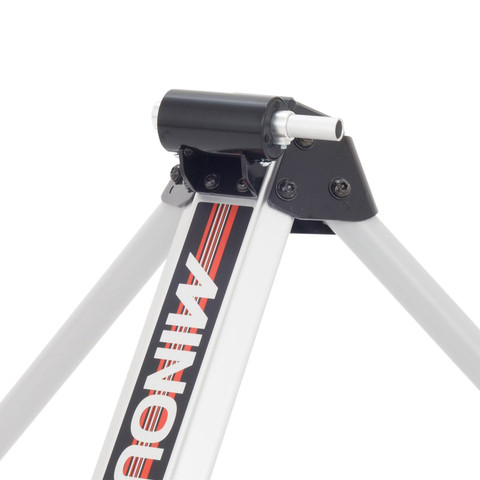

Front wheel fork mount:

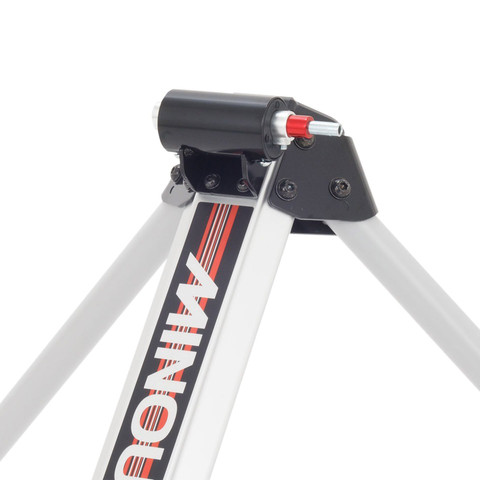

- Compatible with 9mm quick releases and 15mm thru-axles.
- 15/110mm Boost hubs are compatible with a separately sold fork mount.
- With built-in elastomer, it's gentle on the fork and allows for natural pedaling.

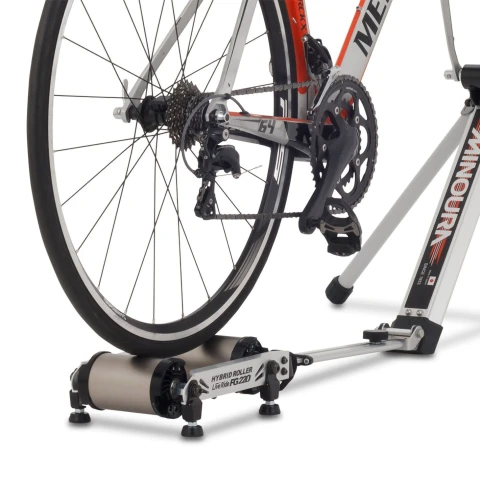

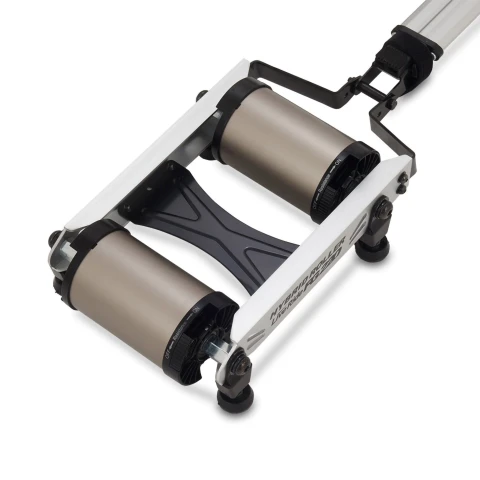

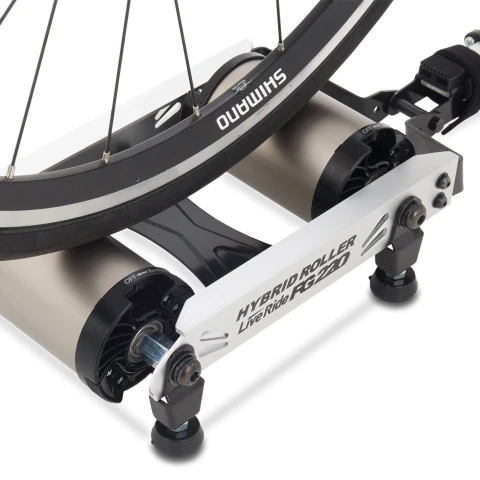

Rear wheel load roller:
- Thanks to its self-weight design and the use of extra-thick 79mm diameter rollers, the tires do not get stuck and wear down less easily.
- Because the rear wheel is not fixed, it supports a wide range of vehicle types, regardless of the end shape, frame material, and other conditions.
- It can be used with three load settings: OFF/OFF, ON/OFF, and ON/ON.
Assembly and setup:
- Shipped from the factory 100% assembled; no assembly required, easy to use.

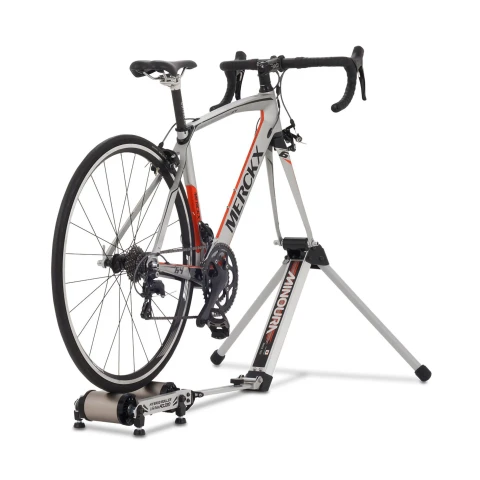

- Setting up the bicycle is simple. Remove the front wheel, fix the front fork to the "front wheel fork mount," place the rear wheel on the "rear wheel load roller," and adjust the wheelbase, and you're done.
Part Number: 400-4768-00
Barcode: 4944924407711
Product Code: MIN TRO FG220RR
- Color: Silver/Black/Gray
- Weight: 6.7 kgs
- Suitable wheelbase: 930 - 1,200 mm
- Compatible wheel sizes 26 inches to 29 inches (horizontal mounting is only possible for 700C)
- Accessories: Dedicated bag
Installation Dimensions:
- Width = 790 mm
- Length = 1,230 mm to 1,470 mm
- Height = 450 mm
Notes and restrictions:
- Do not ride in a way that causes the front wheel fork mount to lift off the ground. This could damage the front fork, cause you to lose balance, or lead to a fall.
- Please use it on a flat, level floor.
- Front forks with a width of 100mm or less (such as those on small-wheeled bicycles) cannot be used.
- This product is not compatible with 20mm thru-axles.
- For 12mm thru-axles, use a 12mm front thru-axle adapter.This can be achieved by using (optional accessories sold separately).
- Depending on the vehicle model and wheel size, it may not be possible to maintain a level surface.
