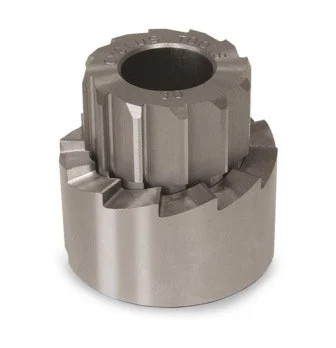

"CYCLUS TOOLS head tube reamer EC 34 (34/15/90°)
With the head tube reamer, with an inner diameter of 30 mm and a milling depth of 15 mm, you can create precisely leveled and coaxially exact plane cup seats on the head tube
for the classic headset assembly, that is with external bearing shells. Nomenclature according to the new naming system S.H.I.S. = Standardized Headset Identification System.
Meaning:
EC (External Cup) stands for the classic tax rate; ZS (Zero Stack) for the semi-integrated tax rate;
IS (Integrated Standard) for the integrated tax rate.
Diameter: 34mm / 1 "" 1/8
Milling depth: max. 15 mm
wall thickness: max. 4 mm
Included in delivery:
Head tube reamer only
Attention! For a complete tool you need the holder for the head tube reamer (art. 720211) and the cone guide (art. 720943)
Tips:
Before reaming, remove existing chrome plates on the frame, to avoid early abrasion of the reamer.
After reaming you may need to remove sharp edges with file.
After the use, clean the reamer and keep it in a safe place." Part Number: 720026 Barcode: 8590831220323 Product Code: CYC 720026
SPARE HEADTUBE REAMER 1 1/8"
