"CYCLUS TOOLS head tube Reamer/Facer 1"" (30 mm)
Guaranteed straight milling - without cants
Note: Turn the milling cutter evenly in a clockwise direction (also when disassembling the milling cutter). Always use suitable cutting oil for the material to be machined for the milling process.
Technical Information: Max. Head Tube Length: 190 mm Max. Milling Depth: 15 mm Max. Tube Wall Strength: 4 mm Max. Internal Diameter: 30 mm (1"" ), 34 mm (1 1/8"" ), 49.6 mm (1.5"" )
Models: 1"" (30 mm): Diameter: 30 mm Part Number: 720005
1 1/8"" (34 mm): Diameter: 30 mm Part Number: 720006
1.5"" (49.6 mm): Diameter: 30 mm Part Number: 720147

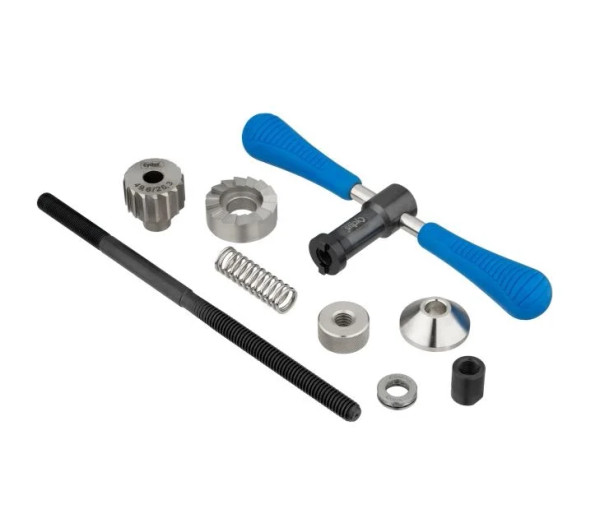

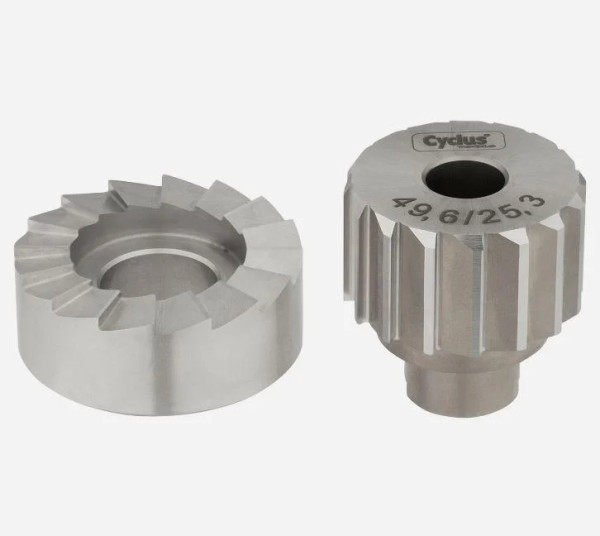

Contents: - 1 x Cyclus Tools double milling head - 1 x Cyclus Tools T-handle - 1 x Cyclus Tools turning spindle with thrust bearing - 1 x Cyclus Tools coil - 1 x Cyclus Tools conical guide" Part Number: 720005 Barcode: 8590831220019 Product Code: CYC 720005
HEADTUBE REAMER & FACER 1
