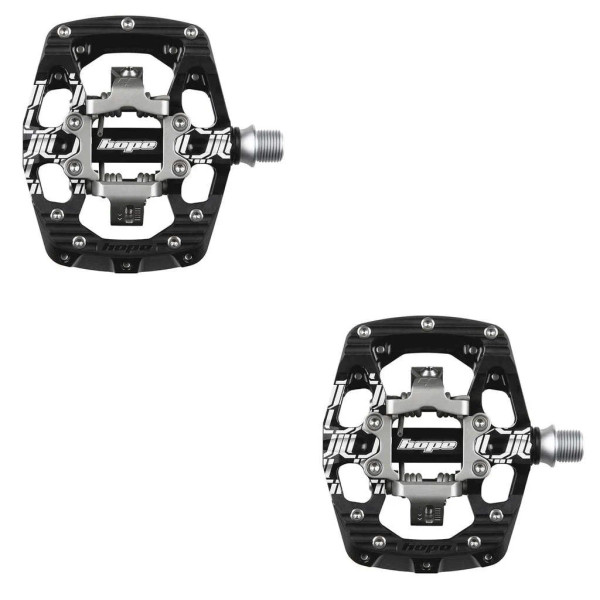

Union Gravity Pedals

Features:

• Dual mechanism designed for easy pedal entry, secure cleat holding and positive, consistent release.
• Dual sided.
• Fully CNC Machined pedal bodies.
• Stainless steel clips and cleats.
• Pedals supplied with two cleats options.
• Large shoe/pedal contact area for maximum power transfer and stability.
• Replaceable pins for increased grip on Union GC (14 pins).
• Foot plate option on Pedal for maximum shoe/pedal contact.
• Available in 6 colour options.

Part Number: PDUGCN, PDUGCC, PDUGCR, PDUGCPU, PDUGCB, PDUGCS, PDUGCA Barcode: 5056454903874, 5056454903898, 5056454903911, 5056454903928, 5056454903881, 5056454903904, 5056454976298 Product Code: HOP PD UG

• Pedals run on three cartridge bearings and a maintenance free IGUS bush for smooth long term durability
• Fully serviceable and re-buildable
• Axle is high strength Cr-Mo, heat treated and plated
• Titanium axle upgrades available
• Q-Factor: 55mm
• Pedals supplied with two cleats options; 4°or 5° of free float and 12° or 13° release angle respectively
• Both cleats also allow 2mm of lateral (side to side) float
• Large platform with option of 7 pins per side or foot plates to give maximum contact between the shoe and pedal and so provide the greatest stability
